Safety sensors

Application:
Optoelectronic safety devices are used to protect access to hazardous points or hazardous areas.

>SLG/SLC range safety light grids and light curtains can be integrated into the safety concept of the machine or plant even under tight space conditions by virtue of their very compact design.
These safety devices are also often used on presses to guard danger points or zones. Depending on the particular resolution of the safety light grids and curtains, protection of persons, hands or even fingers can be provided. SLG/SLC range safety light grids and light curtains achieve Control Category 4 to ISO 13849-1.

Model list

RSS 16

Thermoplastic enclosure
RFID-technology for needs-based protection against tampering
3 different directions of actuation
Door stop with magnetic latching
Connection terminal or plug connection
Suitable for series-wiring

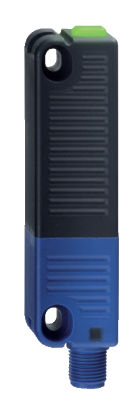

RSS 36

Thermoplastic enclosure
RFID-technology for needs-based protection against tampering
Misaligned actuation possible
27 mm x 108.2 mm x 35 mm
High repeat accuracy of the switching points
2 short-circuit proof PNP safety outputs
Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet

RSS 260

hermoplastic enclosure
Simple mounting without additional angle
RFID-technology for needs-based protection against tampering

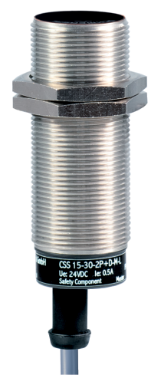

CSS 30

Metal enclosure
Max. 16 sensors can be wired in series.
Pre-wired cable, 7-pole
Ø M30
High repeat accuracy of the switching points
Max. length of the sensor chain 200 m
2 short-circuit proof PNP safety outputs
Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet

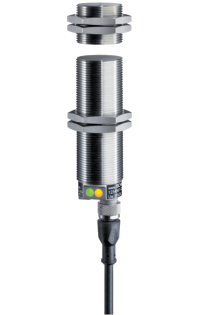

CSS 30S

Stainless steel enclosure
Max. 31 sensors can be wired in series.
Connector M12, 8-pole
Ø M30
High repeat accuracy of the switching points
Max. length of the sensor chain 200 m
2 short-circuit proof PNP safety outputs
Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Safety sensor can also be installed behind V4A covers.

CSS 34

Thermoplastic enclosure
Electronic contact-free, coded system
Misaligned actuation possible
27 mm x 108.2 mm x 35 mm
High repeat accuracy of the switching points
Max. length of the sensor chain 200 m
2 short-circuit proof PNP safety outputs
Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet

CSS 180

Max. length of the sensor chain 200 m
2 short-circuit proof PNP safety outputs
Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Max. length of the sensor chain 200 m
2 short-circuit proof PNP safety outputs
Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
