Features

• Equipped with a large memory capacity (up to 220k program steps or up to 500k data words) and a high-speed processor (11ns/step)
• Local & remote connectivity
  The standard CPU boards with Ethernet interface offer connectivity without limits, from remote programming to monitoring and data logging to FTP server, MEWTOCOL (client/server), EtherNet/IP  and Modbus TCP. Together with the Mini-USB and the RS232C port, it is possible to connect up to 272 devices. Supported services include FTP client/server (file exchange), HTTP Client (data exchange / services with a HTTP server / cloud), and sending e-mails with attachments.
  The integrated web server allows access to the variables of the system / program or diagnostic information using a predefined page or a user-defined page created with the graphical tool "Web Creator" based on HTML5 technology. HTML pages can be viewed from any Internet browser even from mobile devices (smartphones and tablets).
• Security & reliability
  Built-in program backup. Production can resume in the event of fault. Original program is immediately to hand.
• Traceability
  Operational and program editing events are logged. Automatic logs of program download and upload are useful, especially for program debugging.
• Maintenance
  Hour meter operation. The built-in clock/calendar function can be adjusted via Ethernet.


Item			Specifications
			AFP7CPS21	AFP7CPS31	AFP7CPS31E	AFP7CPS41E
Power supply, input/output	Power supply		24V DC or FP power supply unit
	Input		12–24V DC, 24V DC (sink/source)
	Output		Relay: 2–5A, transistor: 0.1–0.5A (varies with different models)
Performance	Number of inputs/outputs		1024	4096
	Expansion		Up to 16 units	Up to 64 units
	Operation speed		14ns/step	11ns/step (for basic instuctions)
	Program memory		Built-in flash ROM (no backup battery required)
	Max. program capacity		64k steps	120k steps		196k steps
	Operation  memory	Internal relays	32,768
		Timer (T)	4,096 points: 1–4,294,967,295 (in units of 10μs, 1ms, 10ms, 100ms or 1s)
		Counter (C)	1,024 points: 1–4,294,967,295
Ethernet function			-	-	Integrated (MEWTOCOL, Modbus TCP, EtherNet/IP)
Constant scan			Available (0–125ms)
Clock/calendar function			Built-in

 Note: AFP7CPS31S, AFP7CPS41S and AFP7CPS41ES additionally support the encryption function.

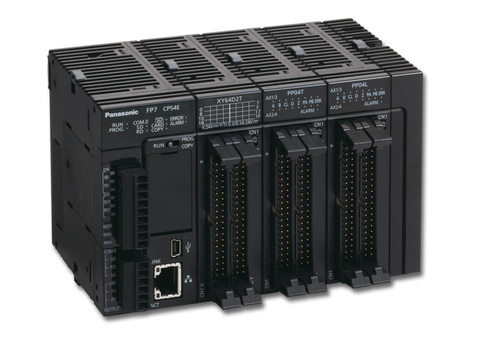

FP7 Model
