High torque micro VFD Inverter featuring on strong torque performance and accurate control for general use iS7 generates more powerful performance in terms of V/F control, V/F PG, slip compensation, sensorless vector control, PMSM (Permanent Magnetic Synchronous Motor) and focuses on user-friendly interface and environment-friendly features including wide graphic LCD keypad, user & macro group support, electro-thermal functions for motor protection, protection for input/output phase Open.
- 1 phase 0.4~2.2kW(0.5~3HP), 200~230V



Features

• EMC filter - class A (Built-in option)
• Selectable V/f, sensorless vector control
• Motor parameter Auto-tuning
• 150% torque at 0.5Hz
• 0.1 ~ 400Hz frequency output
• 1 ~ 15kHz carrier frequency
• 0 ~ 10Vdc analog input
• IP20 enclosure
• Selectable manual/automatic torque boost
• Built-in potentiometer
• Selectable PNP/NPN Input signal
• Fault history: Last 5 faults
• Enhanced process PID contro
• Up-Down & 3-Wire operation
• Modbus RTU communication (optional)
• 8 programmable I/O
• Parameter copy unit
• Monitoring & commissioning PC based software tool (Drive View)



Spectifications



Dimensions

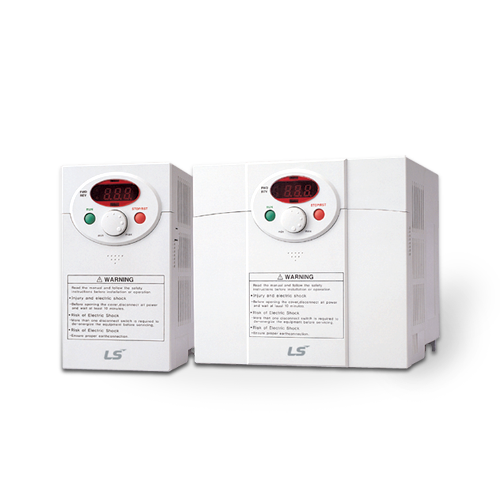

LS-IC5 Model
