จำหน่าย Inverter Inovance

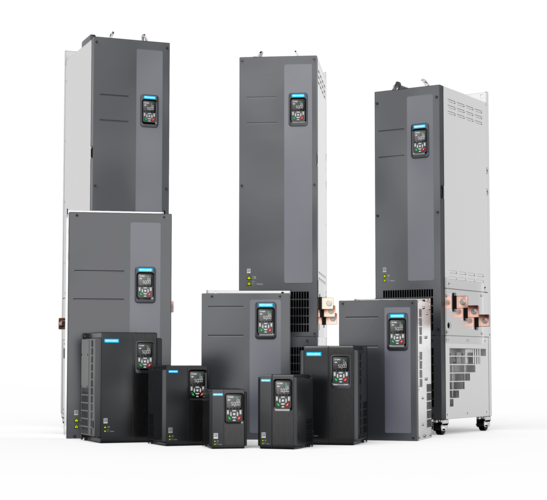

MD520 AC Drive

High performance universal AC drive

■ Unified AC asynchronous and PM synchronous motor control
■ Wide operating voltage and product range:
• 3 ph 380-480 Vac: 0.4 to 500 kW
• 3 ph 200-240 Vac: 0.4 to 75 kW
• 1 ph 200-240 Vac: 0.4 to 2.2 kW
■ STO SIL 3 PL e
■ Built-in DC reactor (400 V: 18.5 kW and above;
200 V: 11 kW and above)
■ Enhanced reliability: conformal coated PCBs compliant to
3S2 and 3C3 environments
■ Complies to efficiency level IE2 as defined in IEC 61800-9-2
■ Through-hole mounting options (0.4 to 160 kW)

MD290 AC Drive

Open loop general purpose drive

• Wide operating voltage Three-phase 380 to 480 Vac 0.4 to 450 kW Three phase 200 to 240 Vac
• Operation in high ambient temperature 50℃ Please note: If operating above 40℃ derating is required
• Built-in DC reactor (400V: 18.5 kW and above; 200V: 11 kW and above)
• Enhanced reliability
• Dual rated (G type and P type)
• Conformally coated PCBs suitable for 3S2 and 3C3 environments (acc. to IEC 60721-3-3)
• PC-based software: simplified start up & backup*2
• Through-hole mounting options (0.4 to 160 kW)

• Wide operating voltage Single-phase 200 to 240 Vac 0.4 to 2.2 kW Three-phase 380 to 480 Vac 0.4 to 3.7 kW
• Internal EMC filter (Category C3)*2
• Complies with EN61800-3 Category C2 2nd Environment (with external EMC filter)
• PM motor control*1
• Operation in high ambient temperatures 50℃ Please note: If operating above 40 ℃, derating is required
• Enhanced reliability and protection against humidity and dust pollution with class 2 conformal coating (resistant to 3C3 and 3S2 environments).
• Onboard comms Modbus RTU (optional CANlink*4)
• PC-Based software: simplified start up & backup*3
• Flexible installation modes

■ Wide operating voltage and product range:
•3 ph 380-480 Vac: 0.4 to 500 kW
•3 ph 200-240 Vac: 0.4 to 75 kW
•1 ph 200-240 Vac: 0.4 to 2.2 kW
■ Operation in high ambient temperatures - up to 50°C*1
■ Built-in DC reactor (400 V: 18.5 kW and above; 200 V: 11 kW and above)
■ Conformal coated PCBs compliant to 3S2 and 3C3 environments
■ Enhanced reliability
■ Complies to efficiency level IE2 as defined in IEC 61800-9-2
■ PC-based software: simplified start up & backup*2
■ Through-hole mounting options (0.4 to 160 kW)
