HMI PROFACE FP/PS
The new Pro-face IPC is now available!

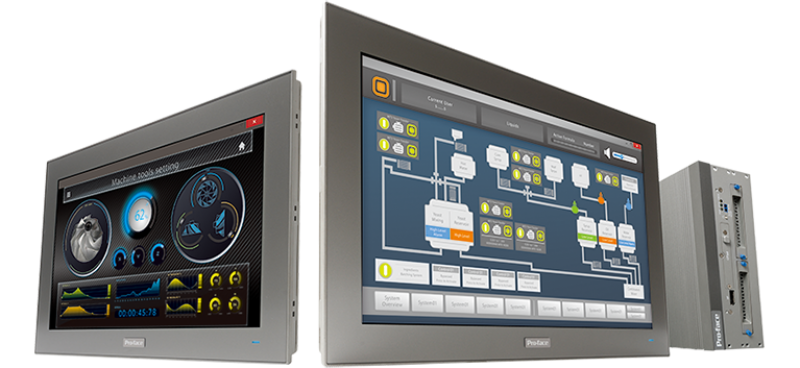

PS5000 Series is the highest performance industrial PC, offering flexible connectivity to a range of devices and design.
Modular Type
| Model | CPU/RAM | Rated Voltage/Expansion Slot | OS | Storage Media | Projected Capacitive | Resistive Film | ||
|---|---|---|---|---|---|---|---|---|
| 22" Wide | 19" Wide | 15" Wide | 15" | |||||
|
|
|
(Single Touch) |
|||||
| Core i7 | Core™ i7 - 4650U 1.7 GHz 8 GB / 16 GB |
24 Vdc / 100 to 240 Vac 0/2 slots *1 |
Windows® 7 Ultimate (64 bits) MUI Windows® Embedded Standard 7 Premium (64 bits) MUI Windows® Embedded 8.1 Industry (64 bits) MUI |
HDD (500GB/1TB) SSD (80GB/160GB/240GB) CFast Card (16GB) *2 |
Specifications | Specifications | Specifications | Specifications |
| Celeron | Celeron® 2980U 1.6 GHz 4 GB / 8 GB |
Specifications | Specifications | Specifications | Specifications | |||
*1PCI or PCIe combination can be chosen for a 2 slot type model.
*2Only for WES7 Premium
Slim Type
| Model | CPU/RAM | Rated Voltage/Expansion Slot | OS | Storage Media | Projected Capacitive | ||||
|---|---|---|---|---|---|---|---|---|---|
| 19" Wide | 15" Wide | 10" Wide | |||||||
| Core i3 | Core™ i3 - 4010U 1.7 GHz 8GB |
24 Vdc / 100 to 240 Vac *3 0 slot |
Windows® 7 Ultimate (64 bits) MUI Windows® Embedded Standard 7 Premium (64 bits) MUI Windows® Embedded 8.1 Industry (64 bits) MUI |
HDD (500GB/1TB) SSD (80GB/160GB/240GB) CFast Card (16GB) *4 |
Specifications |
Specifications |
- | ||
(Enclosed Model) Specifications |
|||||||||
| Atom | Atom™ - E3827 1.75 GHz 4GB |
- |
Specifications |
Specifications |
|||||
*3For use at 100 to 240 Vac, an optional AC / DC power adapter (Core i3 model except PS-5821W: PFXZPSPUAC3, Atom model: PFXZPSPUAC2) that is separately sold is required.
*4Only for WES7 Premium
Box Type
| Model | CPU/RAM | Rated Voltage/Expansion Slot | OS | Storage Media | BOX Type |
|---|---|---|---|---|---|
|
|||||
| Core i7 | Core™ i7 - 4650U 1.7 GHz 8 GB / 16 GB |
24 Vdc / 100 to 240 Vac 0/2 slots *5 |
Windows® 7 Ultimate (64 bits) MUI Windows® Embedded Standard 7 Premium (64 bits) MUI Windows® Embedded 8.1 Industry (64 bits) MUI |
HDD (500GB/1TB) SSD (80GB/160GB/240GB) CFast Card (16GB) *6 |
Specifications |
| Celeron | Celeron® 2980U 1.6 GHz 4 GB / 8 GB |
Specifications |
*5PCI or PCIe combination can be chosen for a 2 slot type model.
*6Only for WES7 Premium
