SINOVA Siemens

3MH7 Contactor Relays

Contactor Relays are the foremost solution for your control circuit needs. These Contactor Relays are the cost-efficient and reliable choice of switching devices for controlling and signaling.

3MT7 3-Pole Power Contactor

3-Pole Power Contactor range is a cost-efficient and reliable solution for a variety of switching applications. The comprehensive range of contactors provides optimum selection for industrial and infrastructure applications

3MU7 Thermal Overload Relays

Thermal Overload Relays are designed for consistent motor protection in all standard applications. Coupled with the SINOVA 3MT7 3-Pole Power Contactors, they provide optimum control and protection for your motor feeders

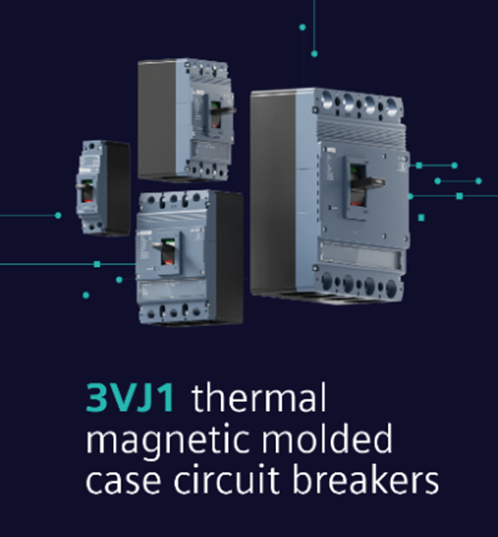

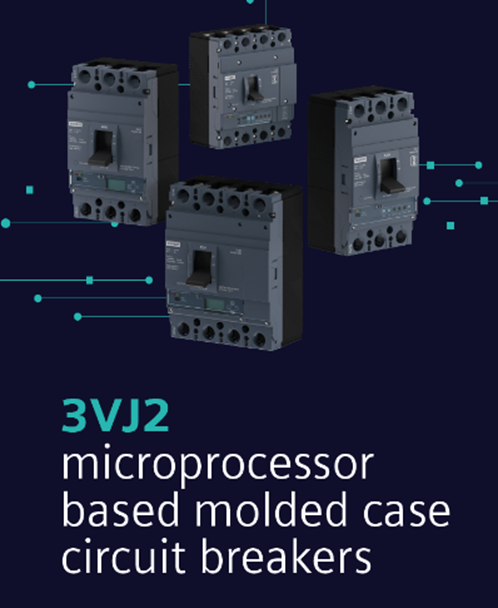

3VJ Molded Case Circuit Breakers (MCCB)

The 3VJ circuit breakers are available with rated operational currents ranging from 20 A to630 A* and rated voltages up to 415 V. The ranges are available in 1, 2, 3 and 4-poleversions with 10, 18, 25, 36 and 55 kA breaking capacities. 3VJ MCCBs are delivered with5 frame sizes.

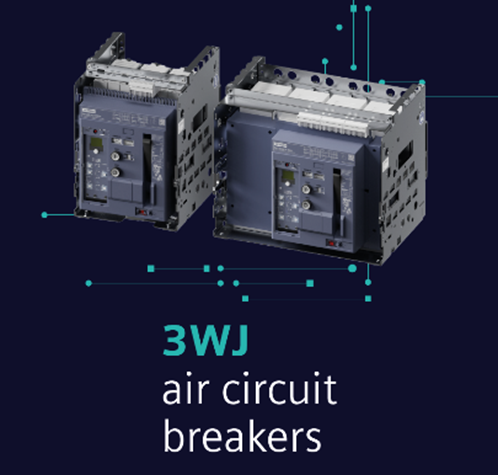

3WJ Air Circuit Breakers : 630-6300 A. (ACB) The 3WA air circuit breakers are used as incoming feeder, tie, and outgoing feeder circuit breakers in electrical installations in industry, buildings and infrastructure applications.

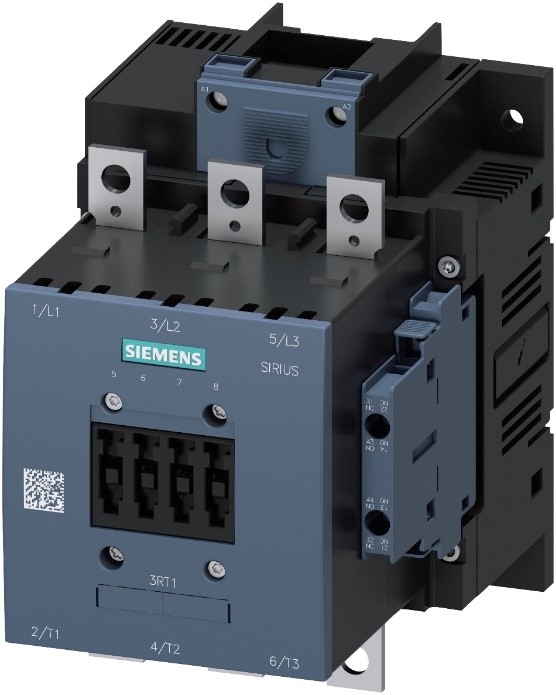

3RT10 contactors

Screw terminals with connecting bars that the cables can be connected to using either cable lugs or flexible or rigid busbars. Alternatively, box terminals are available as accessories.

3RT20 1/2 contactors

Screw terminals or spring-loaded terminals; spring-loaded terminals with convenient plug-in design for device connector

Contactors for switching motor
Size S00: 3RT201 up to 7.5 kW
Size S0: 3RT202 up to 18.5 kW
Size S2: 3RT203 up to 37 kW
Size S3: 3RT204 up to 55 kW
Sizes S6 to S12: 3RT10 up to 250 kW
SIRIUS RT12 and 3TF6 up to 25o Kw
Sizes S10 and S12: 3RT12 up to 250 kW
Size 14: 3TF6 up to 450 kW

3RV2/1 motor starter protectors/circuit breakers (MPCB)

The 3RV2 motor starter protectors are available in four sizes:
-Size S00 – width 45 mm max. rated current 16 A,
at 400 V AC suitable for three-phase motors up to 7.5 kW
-Size S0 – width 45 mm, max. rated current 40 A,
at 400 V AC suitable for three-phase motors up to 18.5 kW
-Size S2 – width 55 mm, max. rated current 80 A,
at 400 V AC suitable for three-phase motors up to 37 kW
-Size S3 – width 70 mm, max. rated current 100 A,
at 400 V AC suitable for three-phase motors up to 45/55 kW

...

3VS and 3VU Motor Starter Protectors / Circuit Breakers (MPCB)

The 3VS13, 3VS16, 3VU13 & 3VU16 circuit-breakers are compact circuit-breakers, for currents up to 63 A which operate according to the current limiting principle.

3RU21 Thermal overload relay

The 3RU21 thermal overload relays have been designed for the protection of three-phase and single-phase AC and DC motors. If single-phase AC or DC loads are to be protected by the 3RU21 thermal overload relays, all three bimetal strips must be heated. For this purpose, all main conducting paths of the relay must be connected in series.

3VA Molded Case Circuit Breakers, UL / IEC : 100-1600 A. (MCCB)

Compact design
3 and 4-pole versions
Fixed-mounting, plug-in technology, draw-out technology
Depending on size: Selective protection response at rated operating current interval 1: 2.5
Electronic Trip Units
Retrofit communication for ETU 5-series and 8-series
Depending on the ETU: Integrated measurement function
AC applications
No derating up to +50 °

3WT/ 3WL Air Circuit Breakers : 630-6300 A. (ACB)

The 3WA air circuit breakers are used as incoming feeder, tie, and outgoing feeder circuit breakers in electrical installations in industry, buildings and infrastructure applications.

5SL/ 5SP Miniature Circuit Breakers (MCB)

In addition to the protective functions of the standard devices, the communication and measuring capable MCBs bring transparency to the final circuit and can react even before the fault occurs. The system availability is increased. Information on the switching status enables predictive maintenance. The standard 5SY MCBs, 5SP4 MCBs and 5SL MCBs can be easily expanded with the communication and measuring capable auxiliary witch / fault signal contact.

5SU Residual Current Protective Devices (RCBO)

RCCBs are used in all systems up to 240/415 V AC. Devices of type AC trip in the event of sinusoidal AC residual currents, type A also trips in the event of pulsating DC residual currents
In addition, RCCBs type F also detect residual currents with mixed frequencies up to 1 kHz.
RCCBs with a rated residual current of maximum 30 mA are used for personnel, material and fire protection, as well as for protection against direct contact. RCCBs with a rated residual current of 10 mA are primarily used in areas that represent an increased risk for personnel.

5SV/ 5SM Residual current circuit breaker (RCCB)

RCCB responsible for prevent  electric leakage and electric shock by automatically opening circuit. Protect when there is an insulation fault and specified leakage current in system .
5SV  series by means of internal contact, effective touch protection is provided

7 KM Power Monitoring Device PAC1020

The PAC1020 can be configured via the integral RS485 interface. Measured data can be
exported for further processing.
The PAC1020 has:
• One digital input
• One digital output
The parameters can be set either directly on the power monitoring device or via the RS485
interface using power config.

7KM Power Monitoring DevicePAC3120

The PAC3120 can be configured via the integrated RS485 interface. Measured data can be
exported for further processing.
The PAC3120 features:
● Two digital inputs
● Two digital outputs
The parameters can be set either directly on the power monitoring device or via power config via the RS485 interface

7KM Power Monitoring Device PAC3220

The PAC3220 has two identical Ethernet interfaces with integral switch. These can be used
to connect other Ethernet nodes to the network.
Two identical expansion module interfaces allow the connection of a further two optionally
available expansion modules. Expansion modules can be used to connect the power
monitoring device to another bus system or to expand its range of functions.
The PAC3220 features:
● Two digital inputs
● Two digital outputs
An optional expansion module can be installed to increase the available number of inputs
and outputs.
The parameters can be set either directly on the power monitoring device or via the
communication interface.

SMART 7KT

Contactors and Overload Relays are suitable for a large variety of applications in building and in industry such as motor control, heating and ventilating, air conditioning, pumping, lifting equipment, lighting, process power factor correction, etc, ...
