PRODUCT » PLC » LIYAN » CPU Module

LIYAN | ABB

PLC

CPU MODULE


Model	EX0N	EX1S	EX1N				EX2N
	16MR	32MR	14MT	16MR	24MR	32MR	32MT	32MR
DI 24V (Sink/Source)	8	16	8	8	16	16	16	16
DO (Relay)	8	16			8	16		16
DO (Transistor)			6	8			16
Type of Connection	removeable screw terminals
Max I/O.	256	-	256
Power Supply	220VAC
HSC	6 points : X0 ~ X5 ; X0 or X1 for 1 phase 60KHz , X2 ~ X5 for 1phase 10KHz

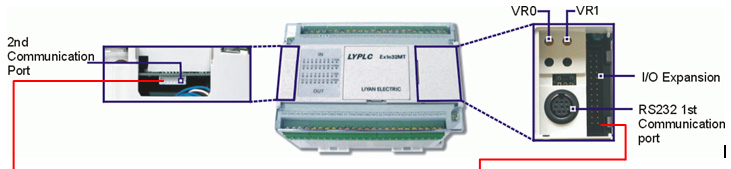

Serial Port	RS-232C (COM1) & RS-232C/RS-422,RS-485 (COM2 as an option for EX series)
Memory	2K	8000 steps ( built in EEprom )
RTC	-	-	-	-	Yes (as an option)
Dimensions (Size)	B	A	B	B	A	A	A	A

Analogue module

Ex1s2AD	2CH analog input module
Ex1s2TC	2CH Thermocouple
Ex1s2LD	2CH Load Cell
Ex1s 2PT	2CH PT100

Communication module

EX232BD	RS232 without photo-coupler
EX485BD	RS422/485 without photo-coupler
EX232ADP	RS232 with photo-coupler
EX485ADP	RS422/485 with photo-coupler

Ex1s series main unit

Ex1s2AD	2CH analog input module
Ex1s2TC	2CH Thermocouple
Ex1s2LD	2CH Load Cell
Ex1s 2PT	2CH PT100

Ex1n series main unit

Ex1n16MR	08IN /08OUT Relay output
Ex1n14MT	08IN /06OUT Transistor output
Ex1n24MR	16IN /08OUT Relay output
Ex1n24MT	16IN /08OUT Transistor output
Ex1n32MR	16IN /16OUT Relay output
Ex1n32MT	16IN /16OUT Transistor output

Ex1n series main unit (DC type)

Ex1n16MR-D	08IN /08OUT Relay output
Ex1n16MT-D	08IN/08OUT Transistor output

Ex2n series main unit

Ex2n24MR	16IN/08OUT Relay output
Ex2n24MT	16IN/08OUT Transistor output
Ex2n32MR	16IN/16OUT Relay output
Ex2n32MT	16IN/16OUT Transistor output

Expansion I/O module

Ex1s08EX	08IN /00OUT
Ex1s08ER	04IN /04OUT Relay
Ex1s08ET	04IN /04OUT Transistor
Ex1s08EYR	00IN /08OUT Relay
Ex1s08EYT	00IN /08OUT Transistor
Ex1n16EX	16IN /00OUT
Ex1n16ER	08IN /08OUT Relay
Ex1n16ET	08IN /08OUT Transistor
Ex1n16EYR	00IN /16OUT Relay
Ex1n16EYT	00IN /16OUT Transistor
Ex1n24ER	16IN /08OUT Relay
Ex1n24ET	16IN /08OUT Transistor
Ex1n32ER	16IN /16OUT Relay
Ex1n32ET	16IN /16OUT Transistor

Analogue module

Ex1n2DA	Analog output module
Ex1n4AD	4CH analog input module
Ex1n8AD	8CH analog input module
Ex1n4TC	4CH Thermocouple
Ex1n8TC	8CH Thermocouple
Ex1n2LD	2CH Load Cell
Ex1n 2PT	2CH PT100

Positioning module

Ex1n1PG	Positioning module
Ex2n1PG	Positioning module for special function

Signal conversion module

Ex1nCTOL	Open Collector TO Line driver
Ex1nLTOC	Line driver TO open Collector

Communication module

EX485LNK

RS422/RS485 with photo-coupler

Wire expansion module

Ex1nNEXT-50	50cm length
Ex1nNEXT-80	80cm length

Power expansion module

ExPower-E

Power expansion
